ROLLCLIP Z

Description

• Easier handling:
  – sheave mounted on sealed ball bearings for excellent efficiency

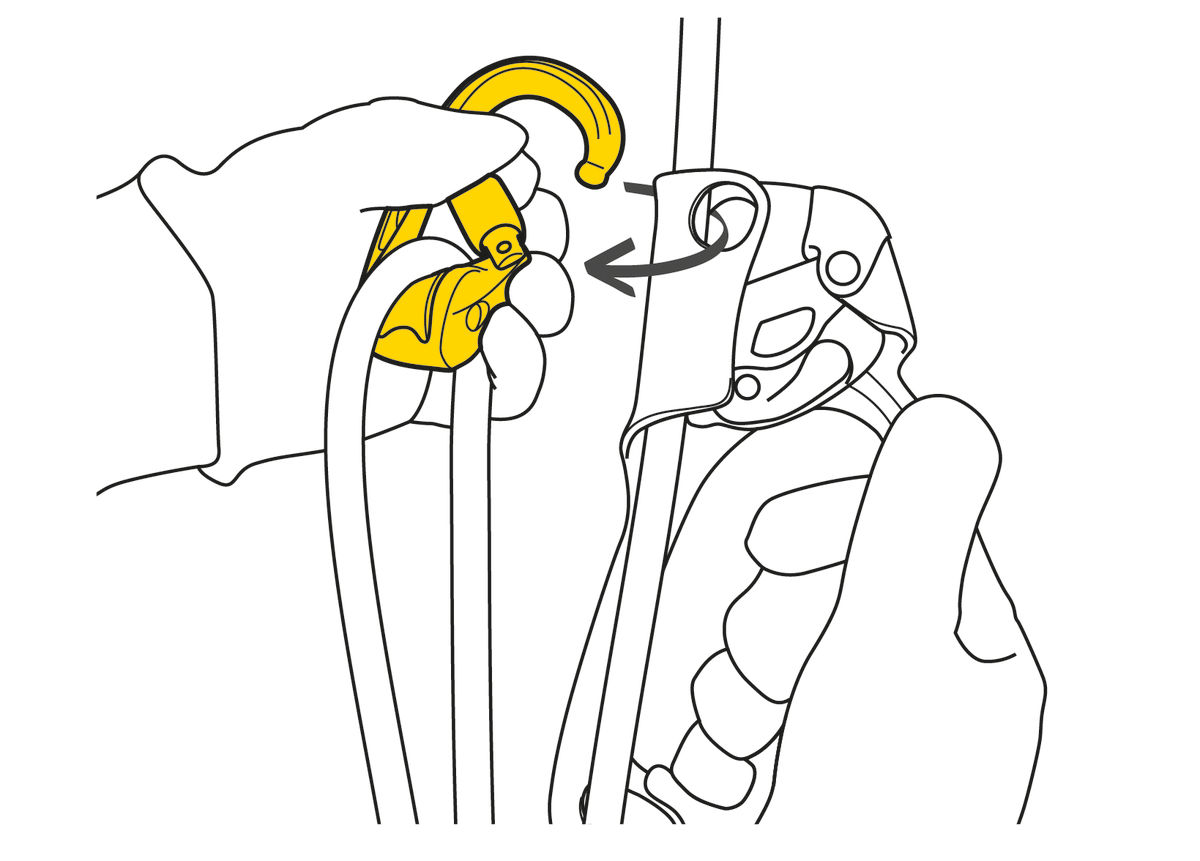

  – gate opening on the non-pulley side, to facilitate installation on devices

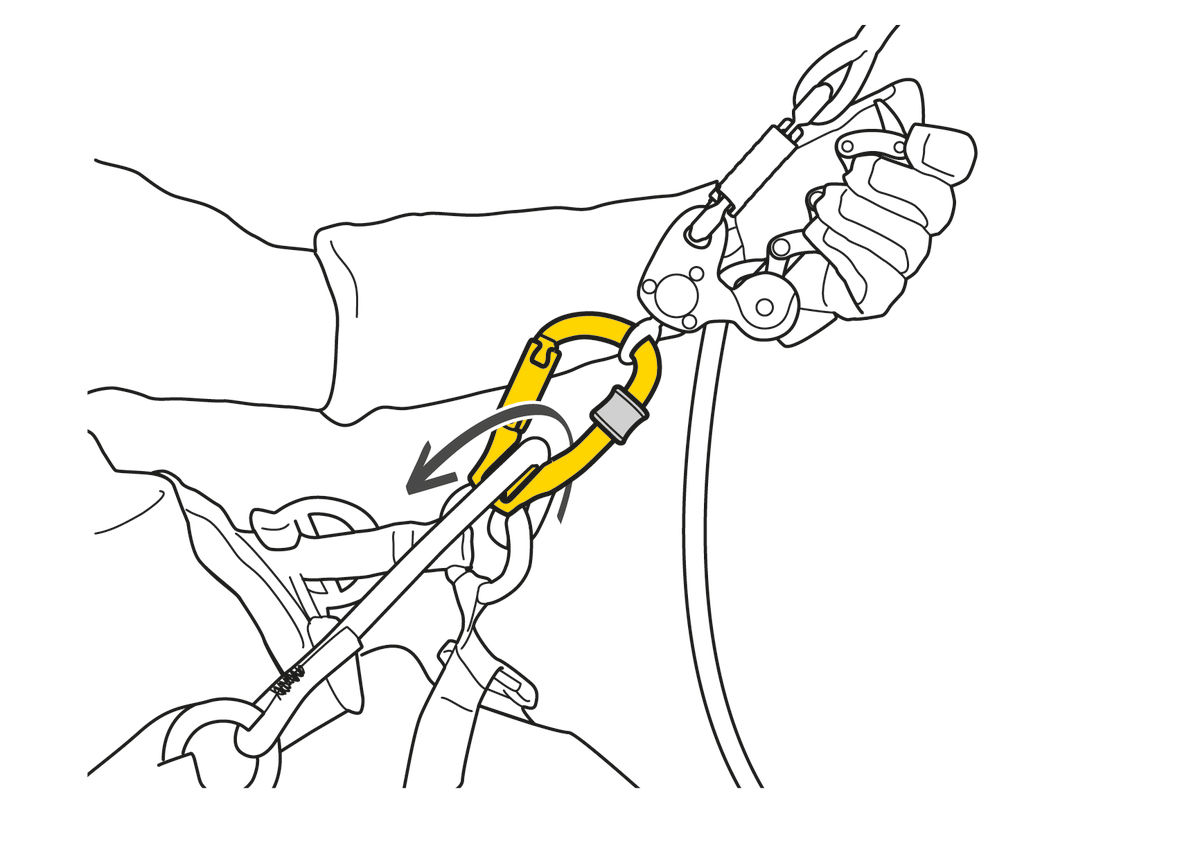

  – Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
• H cross-section of carabiner:
  – ensures an improved strength-to-weight ratio
  – protects markings from abrasion
• Two locking systems available:

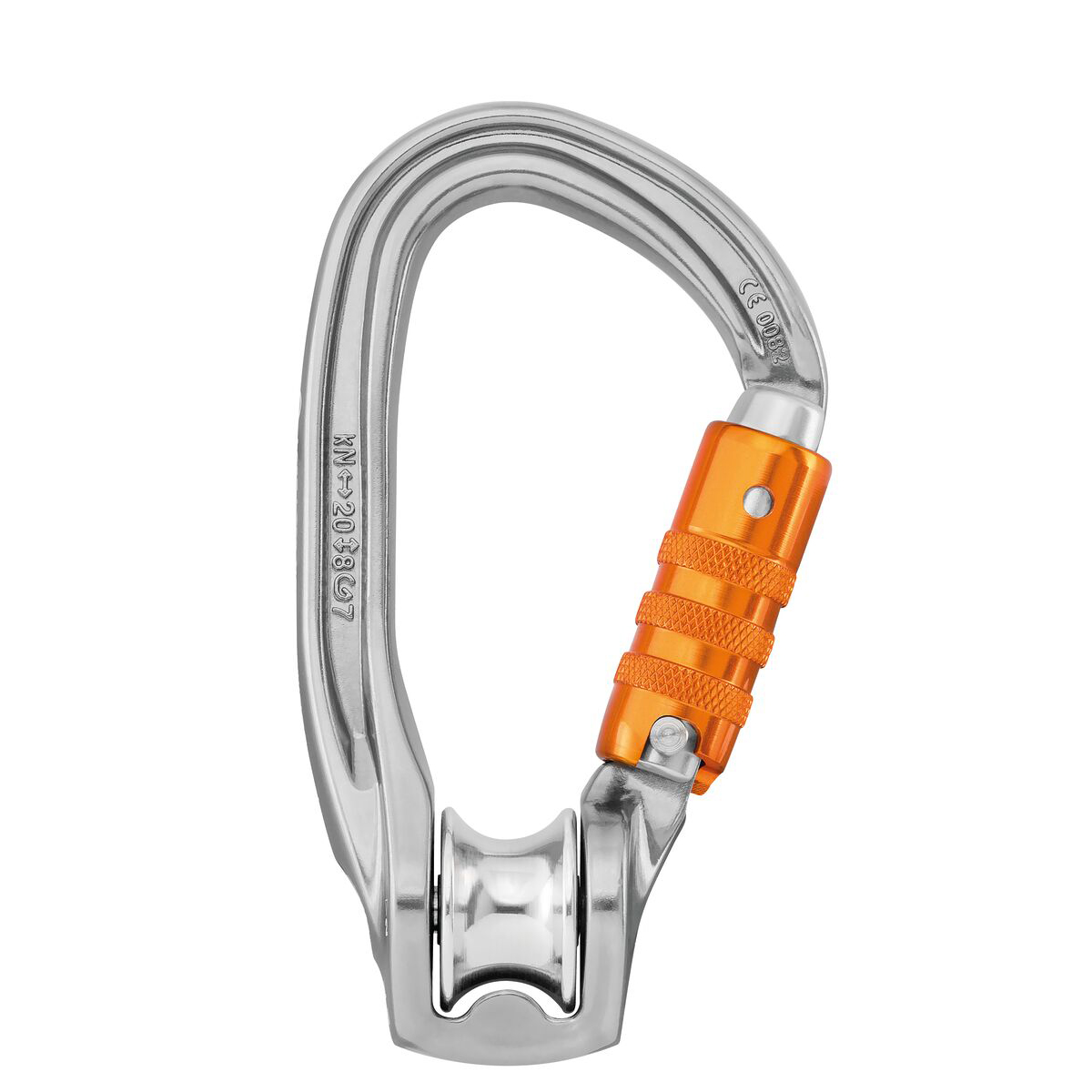

  – TRIACT-LOCK: automatic locking with triple-action gate opening

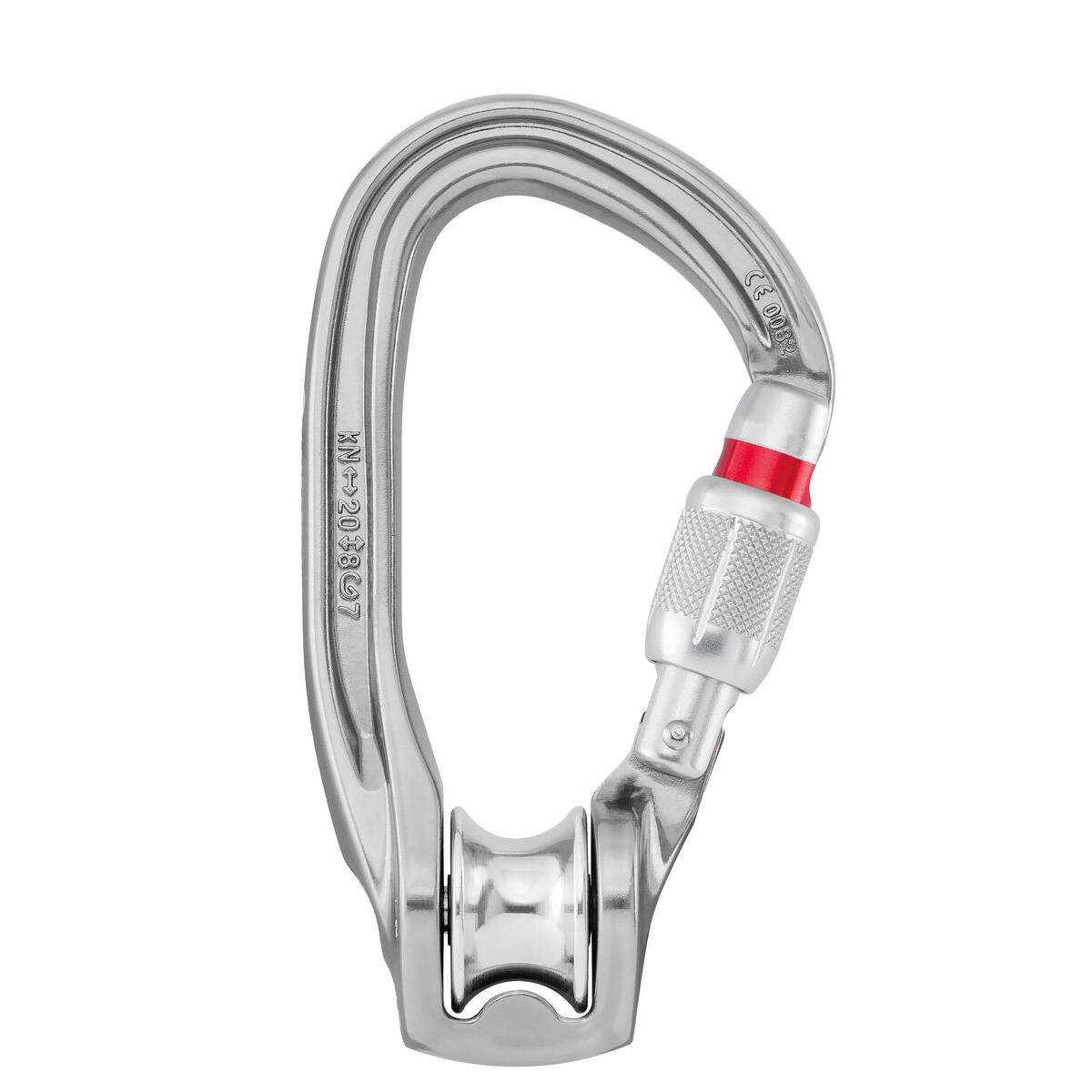

  – SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Specifications

• Material(s): aluminum
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 x 2 = 4 kN
• Efficiency: 85 %
• Major axis strength: 20 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN

Downloads

• Notice
• Declaration of conformity 1
• Declaration of conformity 2
• Declaration of conformity 3
• Product file
• Maintenance Instructions
• PPE Checklist
• PPE Inspection Procedure
